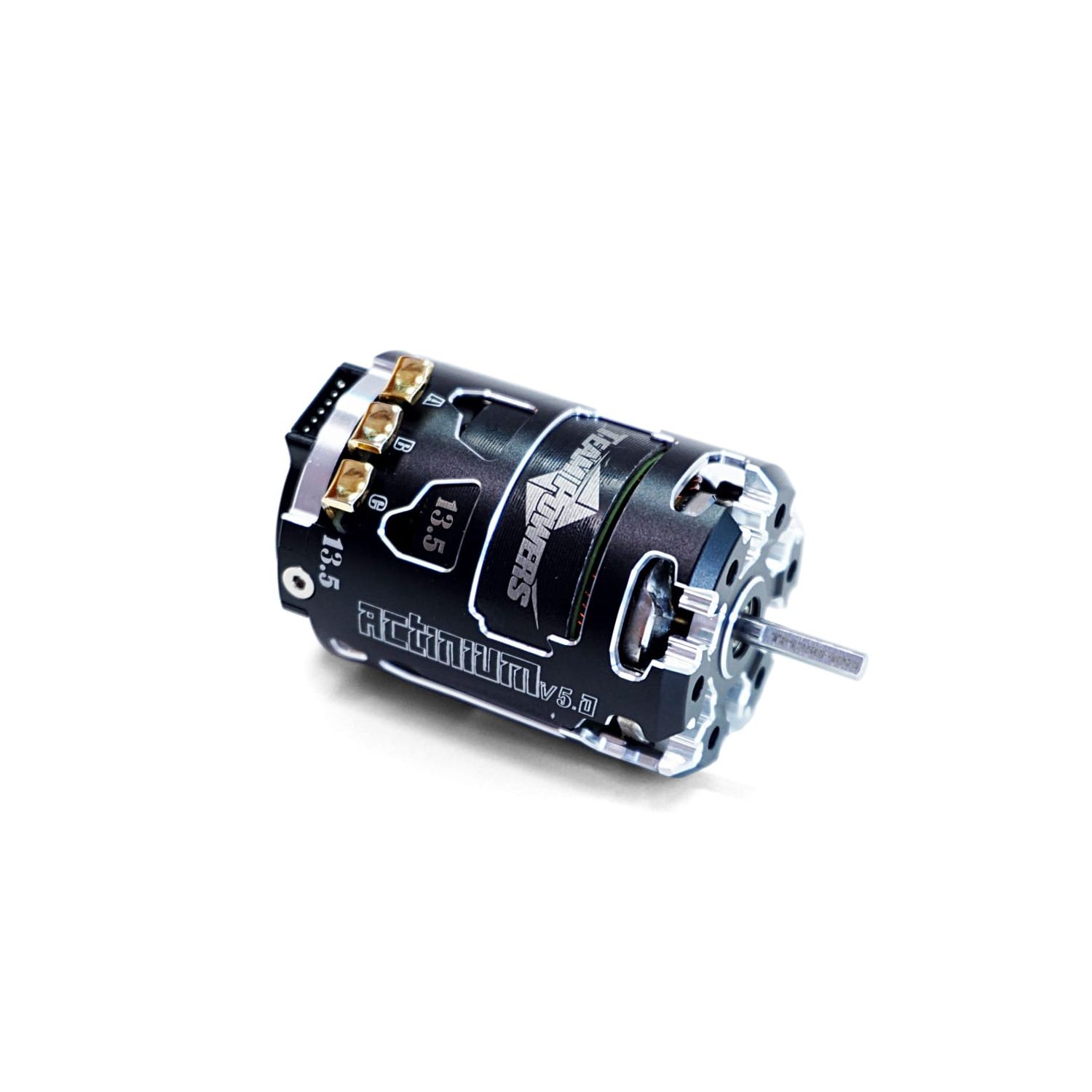

Team Powers Actinium V5 13.5T Brushless Motor(Sensor)

Team Powers Actinium V5 Competition Sensored Brushless Motor

Building on the success of the Actinium V4 competition motor, the Actinium V5 boasts notable performance enhancements. It incorporates a restructured assembly design for heightened sensor precision. With a new stator plate profile sealed with three screws, it assures a consistent magnetic field and heightened efficiency. The purity of its copper wiring has been increased to reduce resistance, and it features a collector ring crafted from a unique alloy that ensures minimal resistance and optimal heat dissipation. Designed with the avid racer in mind, the Actinium V5 promises unparalleled performance race after race.

Features:

Conforms to IFMAR/ROAR/EFRA/BRCA design standards.
Enhanced assembly design for superior sensor precision.
Updated stator plate profile with three sealed screws to bolster magnetic field uniformity and efficiency.
Transitioned from traditional three long assembly screws to shorter screws mounted on the end bell's side.
Enriched copper wiring for reduced resistance.
Hand-wound coils ensure peak accuracy and efficiency.
Modified rotor magnetic material to improve strength, efficiency, and prolong fade-out duration.
Slight alterations in motor can profiles from V4, optimizing convection cooling.
Collector ring crafted from a special alloy to minimize resistance and amplify heat dissipation.
Offered in a variety of turn sizes.

Specifications:

Application: 1/10 Scale Racing
Diameter: 35.8mm
Length: 52.2mm
Shaft Diameter: 3.17mm
Weight: Approximately 150g (varies by turn)
Available Turns: 10.5T, 13.5T, 17.5T, 21.5T
Type: Sensored Brushless

Package Includes:

1 Team Powers Actinium V5 Competition Sensored Brushless Motor.
